SoftNAV diagnostic catheter with hydrophilic coating and a larger I.D.

In tortuous anatomy (for example, elderly patients, radial artery to subclavian artery approach, small blood vessels), many cardiologists experience difficulties and have to spend extra time passing through these tortuous anatomies, which means longer procedure time and more discomforts and pains to the patients. When they use our SoftNAV Catheter (hydrophilic coating), they can easily and smoothly pass through these tortuous anatomies, which means less procedure time and less discomfort and pain to the patients.
Hydrophilic coating plays a big role in these tortuous anatomies.

SoftNAV Catheter has a larger ID, which also makes a big difference for cardiologist’s hands.

5F chart

Manufacturer

Product

I.D.

Technowood

SoftNAV

1.20 mm

Competitor: M

P

1.17 mm

Competitor: C

I

1.19 mm

Competitor: B

I

1.14 mm & 1.19 mm

When cardiologist inject contrast media (for example Omnipaque) by hand injection for coronary arteries, they experience viscosity resistance.
They usually inject a few times for coronary arteries to get good pictures, however, they usually do the cardiac catheterization on multiple patients each day.
Therefore, toward the afternoon, they lose hand grip forces due to fatigue caused by heavy contrast media injections, and they cannot take good pictures.
When this happens, they have to inject more contrast media and this causes side effects to patients and becomes more expensive.
A larger I.D. helps to reduce the viscosity resistance, which means the hands are less tired and better pictures are taken.



SoftNAV Catheter: FL series: Designed for trackability and subtle navigation
SoftNAV Catheter: SL series: Designed for pushability and direct response
LVG

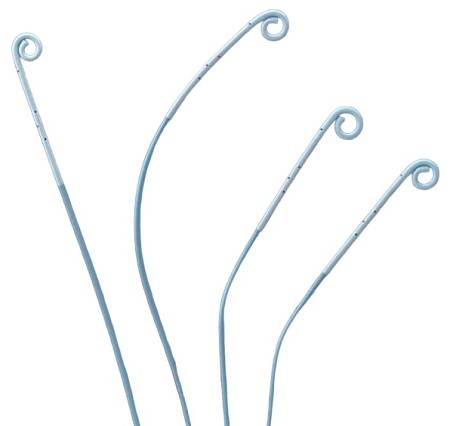

SoftNAV: Pigtail

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

H710-FL4711M

4

110

8

Straight

17

H710-SL4711M

H710-FL4731M

4

110

8

Angle 145

17

H710-SL4731M

H710-FL4741M

4

110

8

Angle 155

17

H710-SL4741M

H710-FL4751M

4

110

8

Multi Curve

17

H710-SL4751M

H710-FL5711M

5

110

8

Straight

17

H710-SL5711M

H710-FL5731M

5

110

8

Angle 145

17

H710-SL5731M

H710-FL5741M

5

110

8

Angle 155

17

H710-SL5741M

H710-FL5751M

5

110

8

Multi Curve

17

H710-SL5751M

LVG, Abdominal Aorta, Peripheral
SoftNAV: Pigtail

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

H710-FL4713M

4

130

8

Straight

17

H710-SL4713M

H710-FL4733M

4

130

8

Angle 145

17

H710-SL4733M

H710-FL4743M

4

130

8

Angle 155

17

H710-SL4743M

H710-FL4753M

4

130

8

Multi Curve

17

H710-SL4753M

H710-FL5713M

5

130

8

Straight

17

H710-SL5713M

H710-FL5733M

5

130

8

Angle 145

17

H710-SL5733M

H710-FL5743M

5

130

8

Angle 155

17

H710-SL5743M

H710-FL5753M

5

130

8

Multi Curve

17

H710-SL5753M

RVG
SoftNAV: Nishiya

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

H710-FL5309

5

110

N/A

Nishiya L

12

H710-SL5309

H710-FL5308

5

110

N/A

Nishiya M

12

H710-SL5308

H710-FL5307

5

110

N/A

Nishiya S

12

H710-SL5307

Coronary

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

SoftNAV: Amplaz (AR) Modified

H710-FL401SH

4

100

N/A

AR MOD

2

H710-SL401SH

H710-FL548

5

100

N/A

AR MOD

H710-SL548

SoftNAV: Amplaz (AL)

H710-FL445SH

4

100

N/A

AL I

2

H710-SL445SH

H710-FL446SH

4

100

N/A

AL II

2

H710-SL446SH

H710-FL545

5

100

N/A

AL I

H710-SL545

H710-FL546

5

100

N/A

AL II

H710-SL546

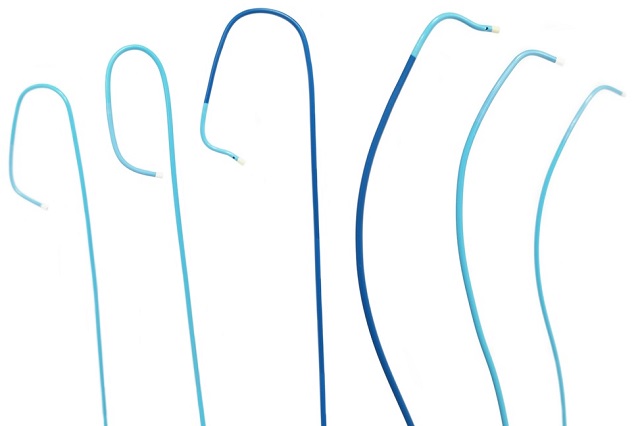

SoftNAV: Judkins Standard

H710-FL418

4

100

N/A

JL 3.5

H710-SL418

H710-FL420

4

100

N/A

JL 4.0

H710-SL420

H710-FL422

4

100

N/A

JL 5.0

H710-SL422

H710-FL419

4

100

N/A

JR 3.5

H710-SL419

H710-FL421

4

100

N/A

JR 4.0

H710-SL421

H710-FL423

4

100

N/A

JR 5.0

H710-SL423

H710-FL518

5

100

N/A

JL 3.5

H710-SL518

H710-FL520

5

100

N/A

JL 4.0

H710-SL520

H710-FL522

5

100

N/A

JL 5.0

H710-SL522

H710-FL519

5

100

N/A

JR 3.5

H710-SL519

H710-FL521

5

100

N/A

JR 4.0

H710-SL521

H710-FL523

5

100

N/A

JR 5.0

H710-SL523

SoftNAV: Judkins Modified

H710-FL418JSH

4

100

N/A

JL 3.5 MOD II

2

H710-SL418JSH

H710-FL420JSH

4

100

N/A

JL 4.0 MOD II

2

H710-SL420JSH

H710-FL422JSH

4

100

N/A

JL 5.0 MOD II

2

H710-SL422JSH

H710-FL419JSH

4

100

N/A

JR 3.5 MOD II

2

H710-SL419JSH

H710-FL421JSH

4

100

N/A

JR 4.0 MOD II

2

H710-SL421JSH

H710-FL423JSH

4

100

N/A

JR 5.0 MOD II

2

H710-SL423JSH

H710-FL518TJ

5

100

N/A

JL 3.5 MOD II

H710-SL518TJ

H710-FL520TJ

5

100

N/A

JL 4.0 MOD II

H710-SL520TJ

H710-FL522TJ

5

100

N/A

JL 5.0 MOD II

H710-SL522TJ

H710-FL519TJ

5

100

N/A

JR 3.5 MOD II

H710-SL519TJ

H710-FL521TJ

5

100

N/A

JR 4.0 MOD II

H710-SL521TJ

H710-FL523TJ

5

100

N/A

JR 5.0 MOD II

H710-SL523TJ

SoftNAV: Judkins Safety

H710-FL418SF1

4

100

N/A

JL 3.5 SF

1

H710-SL418SF1

H710-FL420SF1

4

100

N/A

JL 4.0 SF

1

H710-SL420SF1

H710-FL422SF1

4

100

N/A

JL 5.0 SF

1

H710-SL422SF1

H710-FL419SF2

4

100

N/A

JR 3.5 SF

2

H710-SL419SF2

H710-FL421SF2

4

100

N/A

JR 4.0 SF

2

H710-SL421SF2

H710-FL518SF1

5

100

N/A

JR 3.5 SF

1

H710-SL518SF1

H710-FL518ESF1

5

110

N/A

JL 3.75 SF

1

H710-SL518ESF1

H710-FL520SF1

5

100

N/A

JL 4.0 SF

1

H710-SL520SF1

H710-FL519SF

5

100

N/A

JR 3.5 SF

H710-SL519SF

H710-FL521SF

5

100

N/A

JR 4.0 SF

H710-SL521SF

SoftNAV: Saito

H710-FL4013

4

100

N/A

Saito 3.0

1

H710-SL4013

H710-FL4012

4

100

N/A

Saito 3.5

1

H710-SL4012

H710-FL4011

4

100

N/A

Saito 4.0

1

H710-SL4011

H710-FL5013

5

100

N/A

Saito 3.0

1

H710-SL5013

H710-FL5011

5

100

N/A

Saito 4.0

1

H710-SL5011

H710-FL5012

5

100

N/A

Saito 3.5

1

H710-SL5012

SoftNAV: Toranomon

H710-FL4122

4

100

N/A

LR 3.5

1

H710-SL4122

H710-FL4123

4

100

N/A

LR 4.0

1

H710-SL4123

H710-FL5123

5

100

N/A

LR 4.0

1

H710-SL5123

H710-FL5122

5

100

N/A

LR 3.5

1

H710-SL5122

SoftNAV: Mitsudo

H710-FL4363

4

100

N/A

M-III LR 3.5

1

H710-SL4363

H710-FL4362

4

100

N/A

M-II LR 4.0

1

H710-SL4362

H710-FL4361

4

100

N/A

M-III LR 3.0

1

H710-SL4361

H710-FL5361

5

100

N/A

M-III LR 3.0

1

H710-SL5361

H710-FL5363

5

100

N/A

M-III LR 3.5

1

H710-SL5363

H710-FL5362

5

100

N/A

M-II LR 4.0

1

H710-SL5362

SoftNAV: Kimtac II

H710-FL4060

4

105

N/A

Kimtac II

2

H710-SL4060

H710-FL5060

5

105

N/A

Kimtac II

2

H710-SL5060

Internal Mammary Artery
SoftNAV: IM

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

H710-FL5601

5

100

N/A

IM

H710-SL5601

H710-FL4601

4

100

N/A

IM

H710-SL4601

Multipurpose
SoftNAV: Multiporpose

Part #

Size (F)

Length (cm)

Pigtail Diameter (mm)

Shape

Side Hole

Part #

H710-FL5661

5

110

N/A

MPA-I Small

H710-SL5661

H710-FL5662

5

110

N/A

MPA-I Small

2

H710-SL5662

H710-FL5671

5

130

N/A

MPA-I Small

H710-SL5671

H710-FL5672

5

130

N/A

MPA-I Small

2

H710-SL5672
